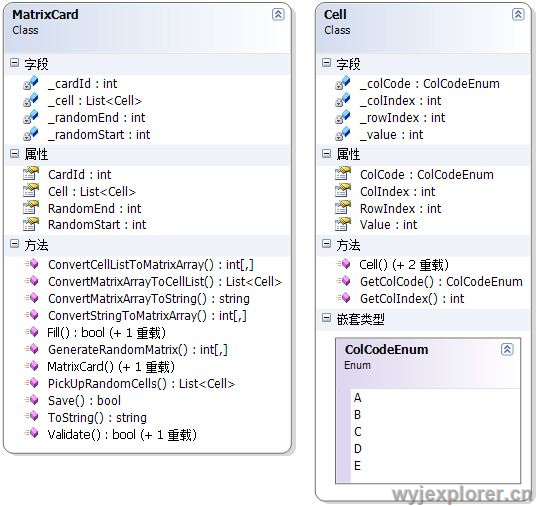

昨天下午我把《C#仿魔兽世界密保卡简单实现》 中的代码用面向对象的方法重构了一遍，引入了2个类：MatrixCard和Cell。MatrixCard描述的是密保卡，构造函数中会随机生成一个二 维矩阵，所以每次new一个MatrixCard对象，就已经生成了一张密保卡。Cell是单元格的意思，将行号、列号、列名做了封装。 MatrixCard类中保留了之前的大部分静态方法，以便灵活调用。
由于本人水平有限，这次的设计并不是非常完美，并且也有一些遗憾。比如现在只能通过Cell[i]的方式来访问单元格，而不可以像Cell["A0"]这样写。有空的时候哥去研究一下重载索引器，争取把它实现。下面发代码：
MatrixCard类：
using System;
using System.Collections.Generic;
namespace GeekStudio.Common
{
///
/// 矩阵卡类
///
public class MatrixCard
{
private int _cardId;
private int _randomStart;
private int _randomEnd;
private List _cell;
///
/// 卡号
///
public int CardId
{
get { return _cardId; }
set { _cardId = value; }
}
///
/// 下界
///
public int RandomStart
{
get { return _randomStart; }
set { _randomStart = value; }
}
///
/// 上界
///
public int RandomEnd
{
get { return _randomEnd; }
set { _randomEnd = value; }
}
///
/// 单元格集合
///
public List Cell
{
get { return _cell; }
set { _cell = value; }
}
///
/// 保存到数据库
///
///
/// 验证用户输入
///
/// 用户输入的Cell集合
/// 是否成功
public bool Validate(List cellsToValidate)
{
if (cellsToValidate.Count < 3)
{
return false;
}
int col1 = cellsToValidate[0].ColIndex;
int row1 = cellsToValidate[0].RowIndex;
int col2 = cellsToValidate[1].ColIndex;
int row2 = cellsToValidate[1].RowIndex;
int col3 = cellsToValidate[2].ColIndex;
int row3 = cellsToValidate[2].RowIndex;
int cellIndex1 = row1 * 5 + col1;
int cellIndex2 = row2 * 5 + col2;
int cellIndex3 = row3 * 5 + col3;
bool OK1 = this.Cell[cellIndex1].Value == cellsToValidate[0].Value;
bool OK2 = this.Cell[cellIndex2].Value == cellsToValidate[1].Value;
bool OK3 = this.Cell[cellIndex3].Value == cellsToValidate[2].Value;
if (OK1 && OK2 && OK3)
{
return true;
}
return false;
}
///
/// 随机选择单元格让用户验证
///
/// 单元格个数
/// 上界
/// 下界
/// Cell集合
public List PickUpRandomCells(int howMany, int colUpper, int rowUpper)
{
Random r = new Random();
List cells = new List();
for (int i = 0; i < howMany; i++)
{
int randomCol = r.Next(0, colUpper);
int randomRow = r.Next(0, rowUpper);
Cell c = new Cell(randomRow, randomCol);
cells.Add(c);
}
return cells;
}
///
/// 重写ToString方法，将Cell集合输出为矩阵字符串
///
///
/// 由字符串给Cell集合赋值
///
/// 矩阵字符串
/// 是否成功
public bool Fill(string strMatrix)
{
try
{
int[,] temparr = ConvertStringToMatrixArray(strMatrix);
Fill(temparr);
return true;
}
catch (Exception)
{
return false;
}
}
///
/// 由数组给Cell集合赋值
///
/// 矩阵数组
/// 是否成功
public bool Fill(int[,] array)
{
try
{
List cells = ConvertMatrixArrayToCellList(array);
this.Cell = cells;
return true;
}
catch
{
return false;
}
}
///
/// 构造函数，随机生成一张5x5矩阵卡，数值范围[0,100)
///
public MatrixCard()
{
int[,] arr = GenerateRandomMatrix(5, 5, 0, 100);
Fill(arr);
}
///
/// 构造函数，由字符串生成矩阵卡
///
/// 矩阵字符串
public MatrixCard(string strMatrix)
{
Fill(strMatrix);
}
// -------------------------------静态方法--------------------------------
#region Static Methods
// ----------------------------死不要脸的分割线----------------------------
///
/// 将矩阵数组转换为Cell集合(以便在MatrixCard对象中操作)
///
/// 矩阵数组
/// Cell集合
public static List ConvertMatrixArrayToCellList(int[,] array)
{
List cells = new List();
int[] lineArr = new int[25];
int k = 0;
for (int i = 0; i < 5; i++)
{
for (int j = 0; j < 5; j++)
{
lineArr[k] = array[i, j];
Cell c = new Cell(i, j);
c.Value = lineArr[k];
cells.Add(c);
k++;
}
}
return cells;
}
///
/// 将Cell集合转换为矩阵数组
///
/// Cell集合
/// 矩阵数组
public static int[,] ConvertCellListToMatrixArray(List cells)
{
int[,] arr = new int[5, 5];
int k = 0;
for (int i = 0; i < 5; i++)
{
for (int j = 0; j < 5; j++)
{
arr[i, j] = cells[k].Value;
k++;
}
}
return arr;
}
///
/// 生成随机矩阵
///
/// 行数
/// 列数
/// 下界
/// 上界
/// 矩阵数组
public static int[,] GenerateRandomMatrix(int rows, int cols, int randomStart, int randomEnd)
{
Random r = new Random();
int[,] arr = new int[5, 5];
// control rows
for (int i = 0; i < rows; i++)
{
// control cols
for (int j = 0; j < cols; j++)
{
arr[i, j] = r.Next(randomStart, randomEnd);
}
}
return arr;
}
///
/// 由矩阵字符串生成矩阵数组
///
/// 矩阵字符串
/// 矩阵数组
public static int[,] ConvertStringToMatrixArray(string matrixStr)
{
int[,] arr = new int[5, 5];
int[] tempArr = new int[25];
int k = 0;
string[] tempArrStr = matrixStr.Split(',');
for (int i = 0; i < tempArr.Length; i++)
{
tempArr[i] = Convert.ToInt32(tempArrStr[i]);
}
for (int i = 0; i < 5; i++)
{
for (int j = 0; j < 5; j++)
{
arr[i, j] = tempArr[k];
k++;
}
}
return arr;
}
///
/// 将矩阵数组保存为矩阵字符串
///
/// 矩阵数组
/// 矩阵字符串
public static string ConvertMatrixArrayToString(int[,] arr)
{
string matrixStr = String.Empty;
int[] lineArr = new int[25];
int k = 0;
for (int i = 0; i < 5; i++)
{
for (int j = 0; j < 5; j++)
{
lineArr[k] = arr[i, j];
k++;
}
}
for (int i = 0; i < lineArr.Length; i++)
{
matrixStr += lineArr[i];
if (i < 24)
{
matrixStr += ",";
}
}
return matrixStr;
}
///
/// 验证用户输入
///
/// 矩阵数组
/// 列号1
/// 行号1
/// 列号2
/// 行号2
/// 列号3
/// 行号3
/// 用户输入的字符串
/// 是否成功
public static bool Validate(int[,] arr, int colIndex1, int rowIndex1, int colIndex2, int rowIndex2, int colIndex3, int rowIndex3, string userInput)
{
try
{
string[] inputArr = userInput.Split(',');
bool OK0 = arr[rowIndex1, colIndex1] == Convert.ToInt32(inputArr[0]);
bool OK1 = arr[rowIndex2, colIndex2] == Convert.ToInt32(inputArr[1]);
bool OK2 = arr[rowIndex3, colIndex3] == Convert.ToInt32(inputArr[2]);
if (OK0 && OK1 && OK2)
{
return true;
}
else
{
return false;
}
}
catch (Exception)
{
Console.WriteLine("Oh, Shit!");
}
return false;
}
#endregion
}
}
| | | | | | | | | | | Cell类：
namespace GeekStudio.Common
{
///
/// 单元格类
///
public class Cell
{
private int _rowIndex;
private int _colIndex;
private ColCodeEnum _colCode;
private int _value;
///
/// 行号
///
public int RowIndex
{
get { return _rowIndex; }
set { _rowIndex = value; }
}
///
/// 列号
///
public int ColIndex
{
get { return _colIndex; }
set { _colIndex = value; }
}
///
/// 列名
///
public ColCodeEnum ColCode
{
get { return _colCode; }
set { _colCode = value; }
}
///
/// 值
///
public int Value
{
get { return _value; }
set { _value = value; }
}
///
/// 列名枚举
///
public enum ColCodeEnum
{
A = 0,
B = 1,
C = 2,
D = 3,
E = 4
};
public Cell()
{
this._value = 0;
}
public Cell(int rowIndex, int colIndex)
{
this._rowIndex = rowIndex;
this._colIndex = colIndex;
this._colCode = GetColCode(colIndex);
this._value = 0;
}
public Cell(int rowIndex, ColCodeEnum colCode)
{
this._rowIndex = rowIndex;
this._colIndex = GetColIndex(colCode);
this._colCode = colCode;
this._value = 0;
}
///
/// 根据列名获取列号
///
/// 列名
/// 列号
public static int GetColIndex(ColCodeEnum colCode)
{
return (int)colCode;
}
///
/// 根据列号获取列名
///
/// 列号
/// 列名
public static ColCodeEnum GetColCode(int colIndex)
{
ColCodeEnum colCode = ColCodeEnum.A;
switch (colIndex)
{
case 0:
colCode = ColCodeEnum.A;
break;
case 1:
colCode = ColCodeEnum.B;
break;
case 2:
colCode = ColCodeEnum.C;
break;
case 3:
colCode = ColCodeEnum.D;
break;
case 4:
colCode = ColCodeEnum.E;
break;
default:
break;
}
return colCode;
}
}
}
ASP.NET调用：
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using GeekStudio.Common;
using System.Text;
public partial class MatrixCardTest : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
if (!Page.IsPostBack)
{
MatrixCard mc = new MatrixCard();
StringBuilder sb = PrintMatrixToHtmlTable(mc);
ltrMatrixCard.Text = sb.ToString();
Session["mc"] = mc;
// 随机选择3个单元格给用户验证
List cellsToValidate = mc.PickUpRandomCells(3, 5, 5);
lblCellText = String.Format("{0}{1}", cellsToValidate[0].ColCode, cellsToValidate[0].RowIndex);
lblCellText = String.Format("{0}{1}", cellsToValidate[1].ColCode, cellsToValidate[1].RowIndex);
lblCellText = String.Format("{0}{1}", cellsToValidate[2].ColCode, cellsToValidate[2].RowIndex);
Session["cellsToValidate"] = cellsToValidate;
}
}
private static StringBuilder PrintMatrixToHtmlTable(MatrixCard mc)
{
StringBuilder sb = new StringBuilder();
sb.Append("");
sb.Append(" A B C D E ");
sb.Append(String.Format("{0} ", k));
for (int l = 0; l < 5; l++)
{
sb.Append(String.Format("{0} ", mc.Cell[i].Value));
i++;
}
sb.Append(" ");
}
sb.Append("");
return sb;
}
protected void btnSubmit_Click(object sender, EventArgs e)
{
MatrixCard mc = null;
if (Session["mc"] != null)
{
mc = (MatrixCard)Session["mc"];
}
List cellsToValidate = null;
if (Session["cellsToValidate"] != null)
{
cellsToValidate = (List| )Session["cellsToValidate"];
}
cellsToValidate[0].Value = Convert.ToInt32(txtCellText.Trim());
cellsToValidate[1].Value = Convert.ToInt32(txtCellText.Trim());
cellsToValidate[2].Value = Convert.ToInt32(txtCellText.Trim());
bool OK = mc.Validate(cellsToValidate);
if (OK)
{
lblStatus.Text = "Your input were correct!";
}
else
{
lblStatus.Text = "Sorry, your input were wrong!";
}
}

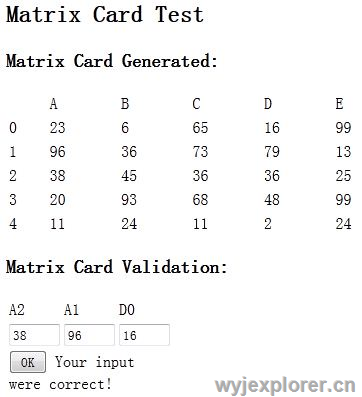

} | | | 有图有真相：
