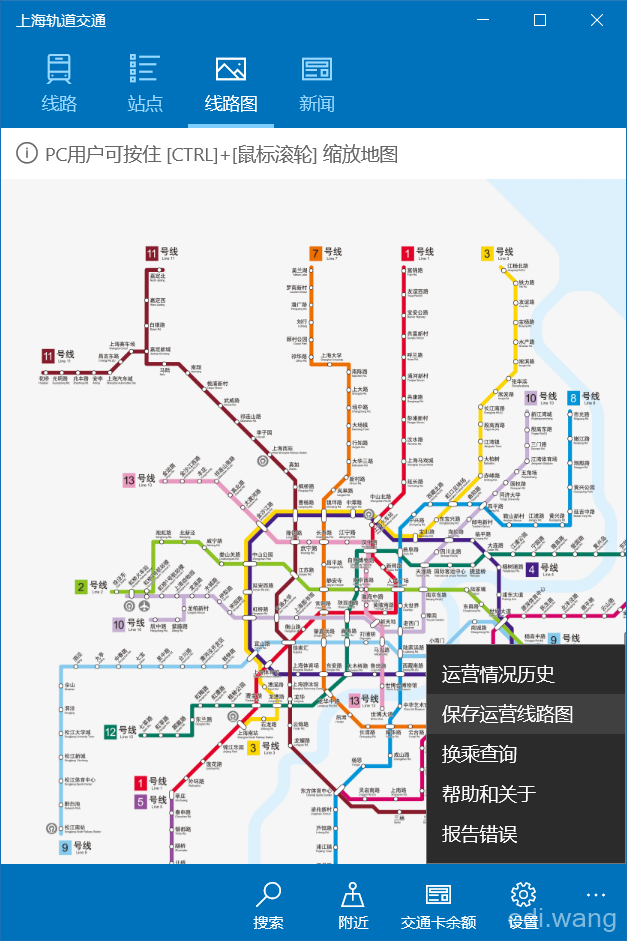

My UWP application "Shanghai Metro" has an option to allow user save the metro graph to local file system. The image file is located under project directory, "Assets\shanghaimetro-xl.jpg", and will ask the user to choose a location when saving the image.

This is a very common functionality, it's also easy to achieve in UWP applications. The most easy way to do it is to use my library "Edi.UWP.Helpers"

This library is also open source on GitHub:

In the BitmapExtensions.cs, there's an extension method called:

public static Task<FileUpdateStatus> SaveToPngImage(this WriteableBitmap bitmap, PickerLocationId location, string fileName);

The parameter is type of WriteableBitmap, so the first step is to convert your image file to WriteableBitmap:

public static async Task<WriteableBitmap> LoadWriteableBitmap(string relativePath)
    var storageFile = await Package.Current.InstalledLocation.GetFileAsync(relativePath.Replace('/', '\\'));
    var stream = await storageFile.OpenReadAsync();
    var wb = new WriteableBitmap(1, 1);
    return wb;

Then you can save the image use this method:

var rmbp = await Helper.LoadWriteableBitmap("Assets/shanghaimetro-xl.jpg");
await rmbp.SaveToPngImage(PickerLocationId.PicturesLibrary, "shmetro");

The example code is:

public static async Task<FileUpdateStatus> SaveToPngImage(this WriteableBitmap bitmap, PickerLocationId location, string fileName)
    var savePicker = new FileSavePicker
        SuggestedStartLocation = location
    savePicker.FileTypeChoices.Add("Png Image", new[] { ".png" });
    savePicker.SuggestedFileName = fileName;
    StorageFile sFile = await savePicker.PickSaveFileAsync();
    if (sFile != null)

        using (var fileStream = await sFile.OpenAsync(FileAccessMode.ReadWrite))
            BitmapEncoder encoder = await BitmapEncoder.CreateAsync(BitmapEncoder.PngEncoderId, fileStream);
            Stream pixelStream = bitmap.PixelBuffer.AsStream();
            byte[] pixels = new byte[pixelStream.Length];
            await pixelStream.ReadAsync(pixels, 0, pixels.Length);
            encoder.SetPixelData(BitmapPixelFormat.Bgra8, BitmapAlphaMode.Ignore,
            await encoder.FlushAsync();

        FileUpdateStatus status = await CachedFileManager.CompleteUpdatesAsync(sFile);
        return status;
    return FileUpdateStatus.Failed;

There's few things to metion:

1. I only wrote "png" format support, you can extend this behaviour yourself.

2. To make sure other thread don't fuck up with your image, use CachedFileManager.DeferUpdates and CachedFileManager.CompleteUpdatesAsync
