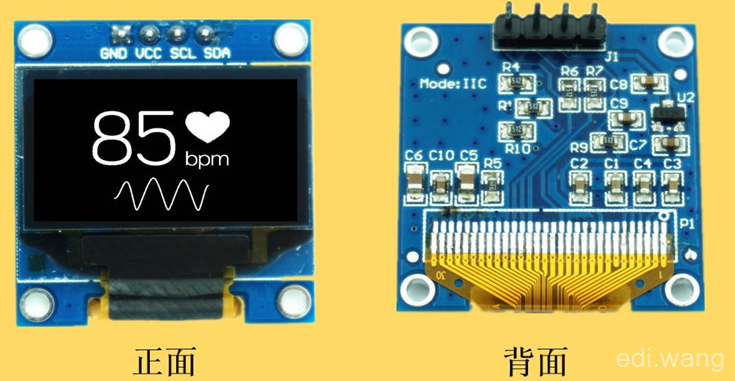

I bought a 128x64 0.96 inch OLED display, like this one:
The driver chip for this screen is called SSD 1306, typically, this chip will have 2 layouts, SPI or I2C. However, the examples fo how to drive I2C with SSD 1306 is very rare, and they run on Raspbian not Windows. Luckly, with the help from a Microsoft Staff in US, we finally got the code to run the screen on Windows 10 IoT Core.

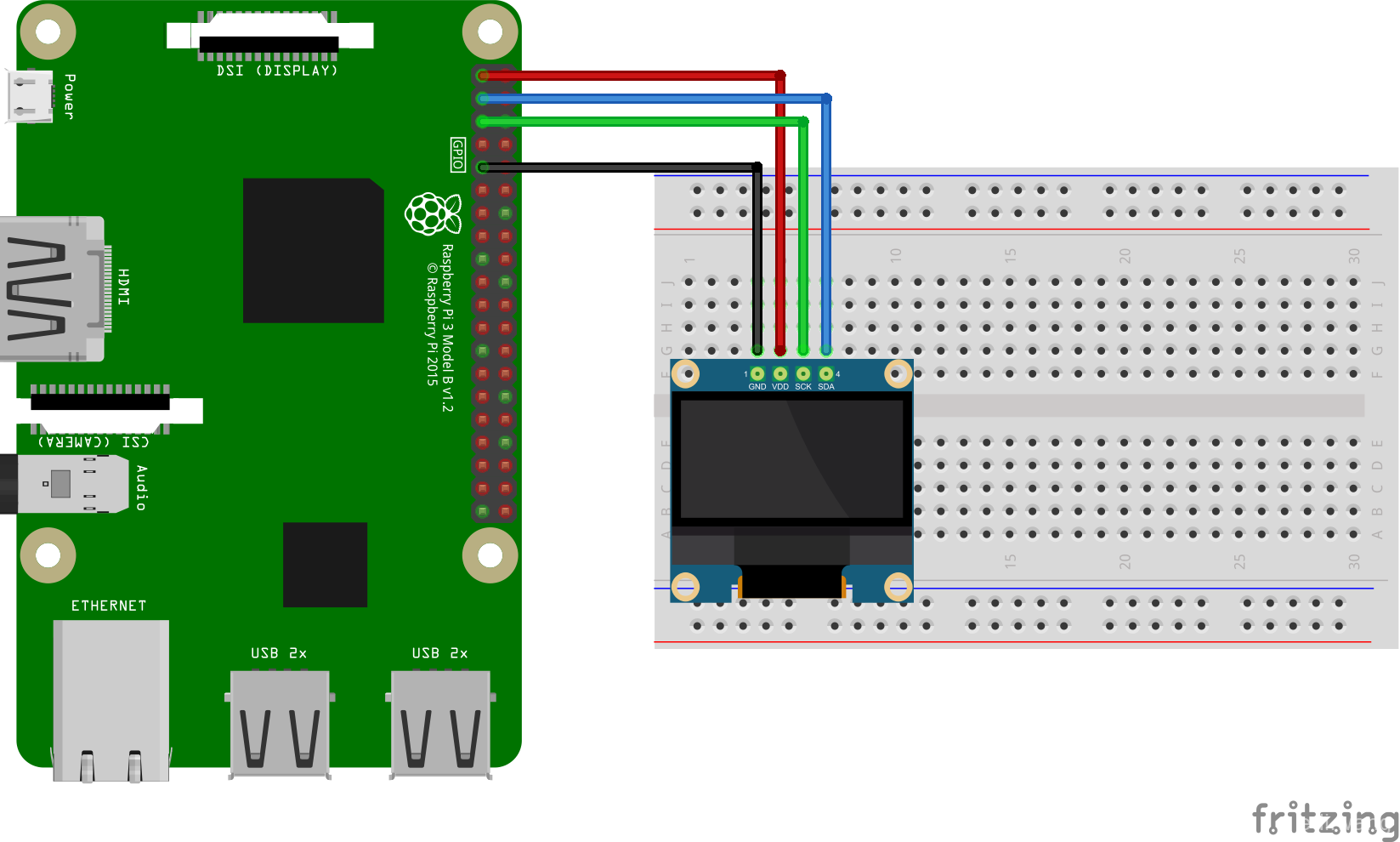

1. Physical Connection
Just like any other I2C device, connect GND to ground, VCC to DC 3.3V, SCL to clock, SDA to data.
2. Coding
The official sample gallery from Microsoft is only supporting SPI by SSD1306. The I2C version is here, but never merged to master branch, I don't know what's the hold up.
https://github.com/stefangordon/IoTCore-SSD1306-Driver
Just download and deploy to your Raspberry Pi.
This project is an UWP background app, so there will be no UI when the app is running. VS won't attach either, but the screen will work. The entrance point of the program is "StartupTask.cs"
To control the display, use "DisplayManager.cs"
The 128x64 LED can display 4 lines of text, use this method to output the text:
public void WriteLineDisplayBuf(String Line, UInt32 Col, UInt32 Row)
Row range is between 0-3, which match line 1-4 on the screen. If you want to align text to left, set "Col" to 0. Line is the content of the text, which is type of string.
To display an image, use this method:
public UInt32 WriteImageDisplayBuf(DisplayImage img, UInt32 Col, UInt32 Row)
The default example in the project is to display a "WIFI Connected" picture on line 1, "Hello" on line 2, "World" on line 3, so the code is:
static void DrawBody() { // Row 0, and image display.WriteImageDisplayBuf(DisplayImages.Connected, 0, 0); // Row 1 - 3 display.WriteLineDisplayBuf("Hello", 0, 1); display.WriteLineDisplayBuf("World", 0, 2); }
3. Running the Program

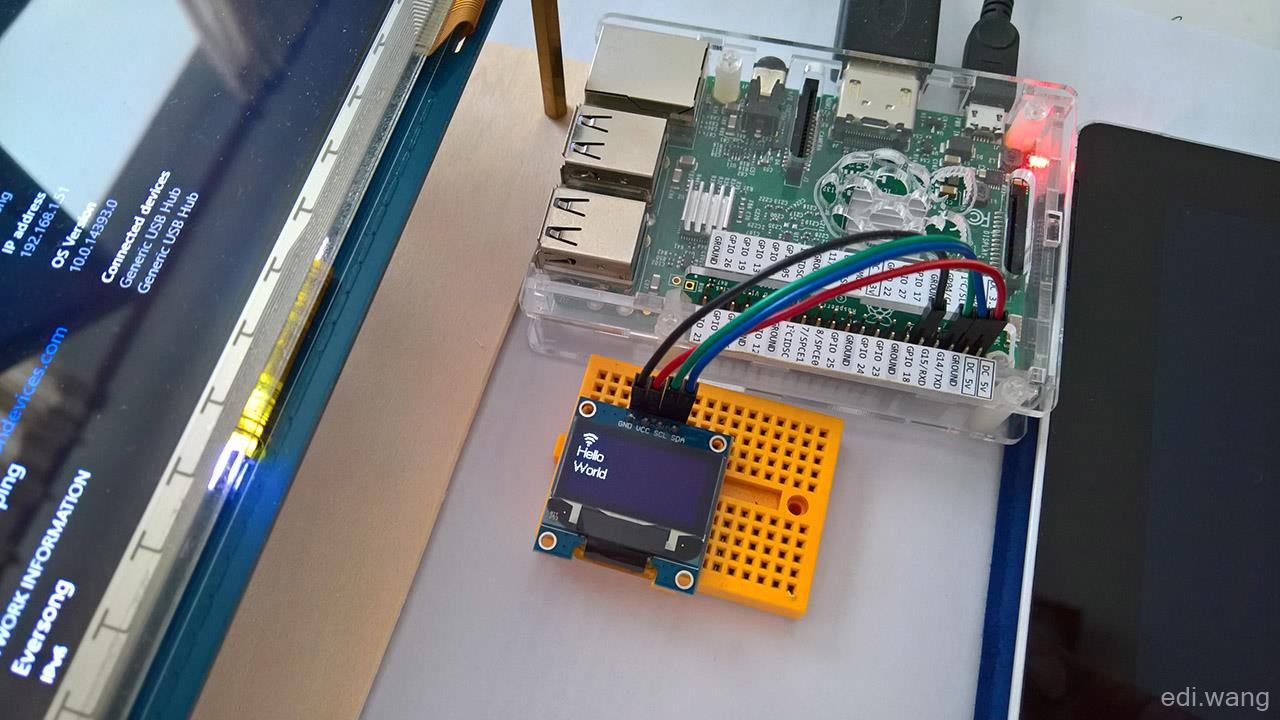

The result is like this
